High Performance PCB Laser Machine Automatic PCB Laser Marking Machine CO₂ UV Green Laser PCB Laser Marking Machine

High Performance PCB Laser Machine Automatic PCB Laser Marking Machine CO₂ UV Green Laser PCB Laser Marking Machine


Model:	R510
Availability:

Quantity:

Inquire Add to Basket

Model:
SD-R510
Brand:
SHENGDIAN

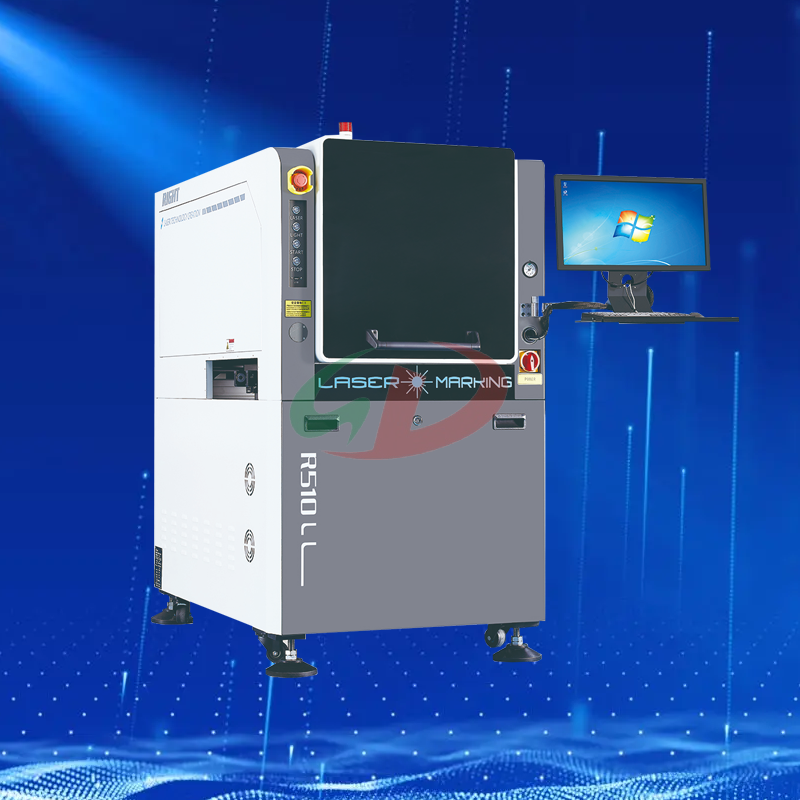

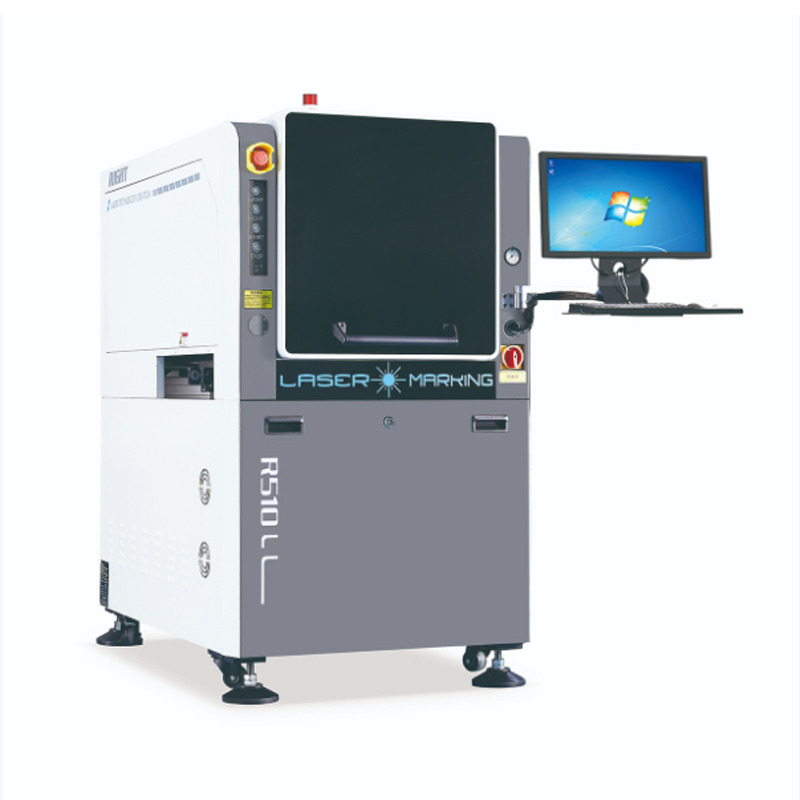

PCB Laser Machine Automatic Laser Marking Machine SMT Fiber Laser Marking Machine

Product Description

R510-5

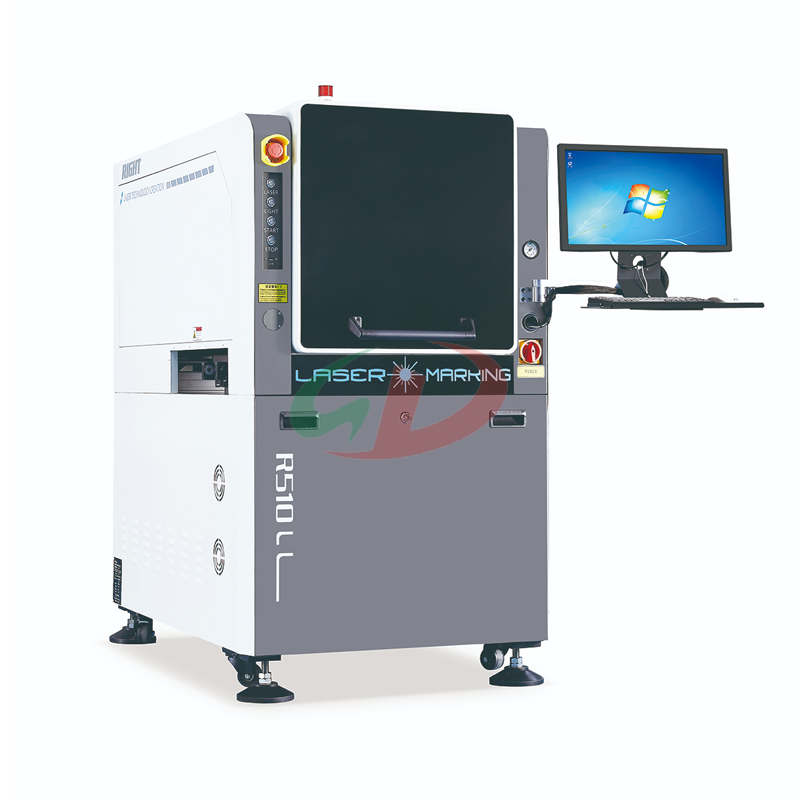

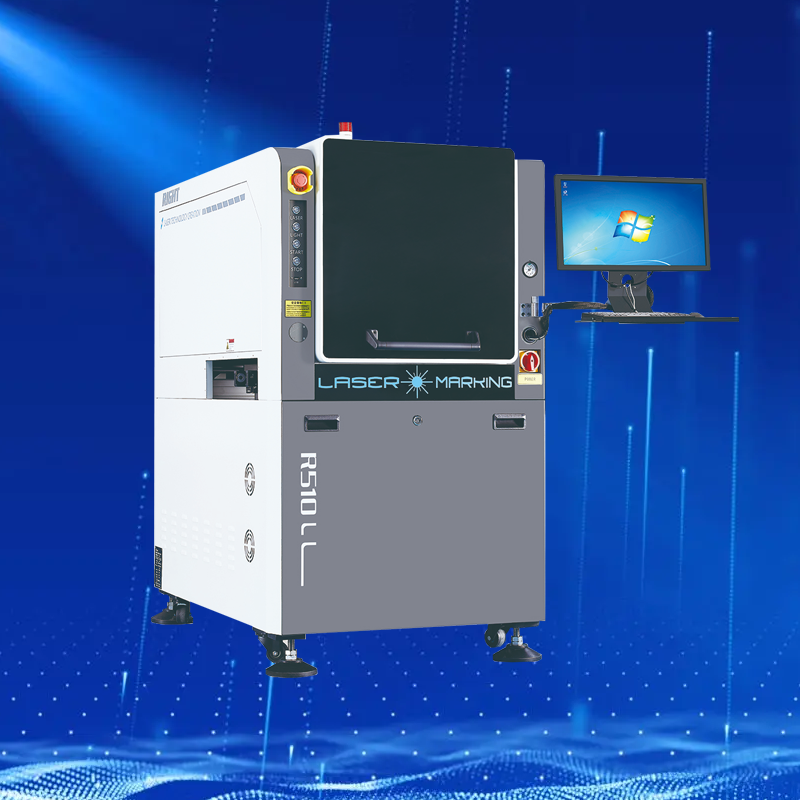

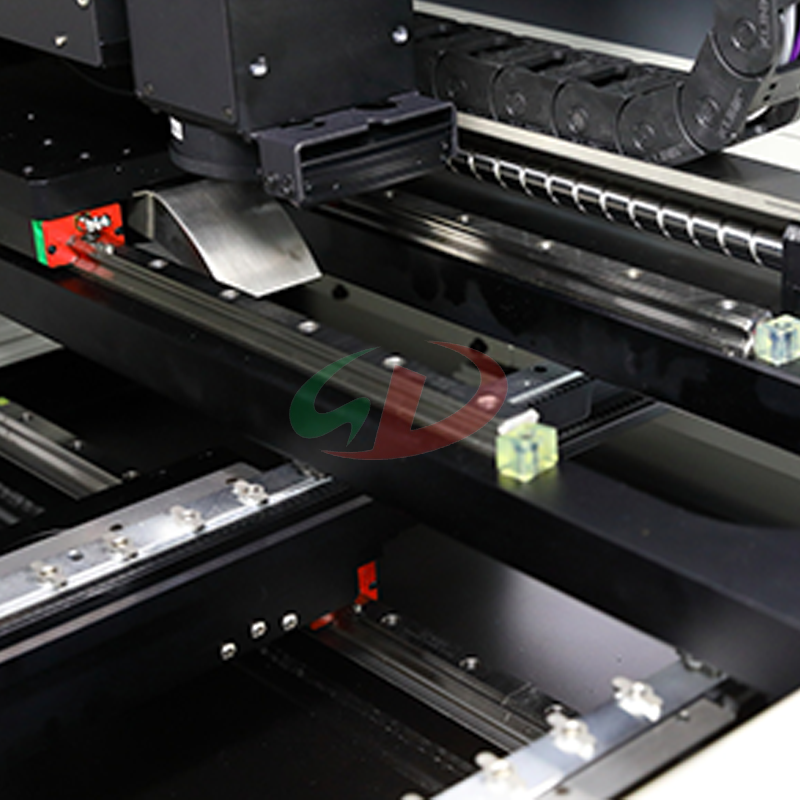

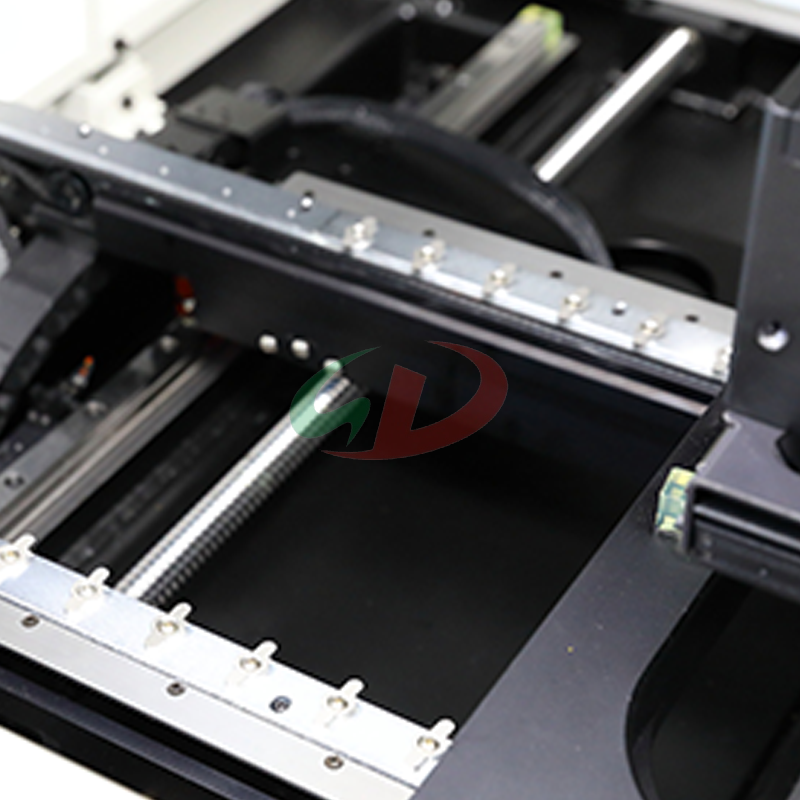

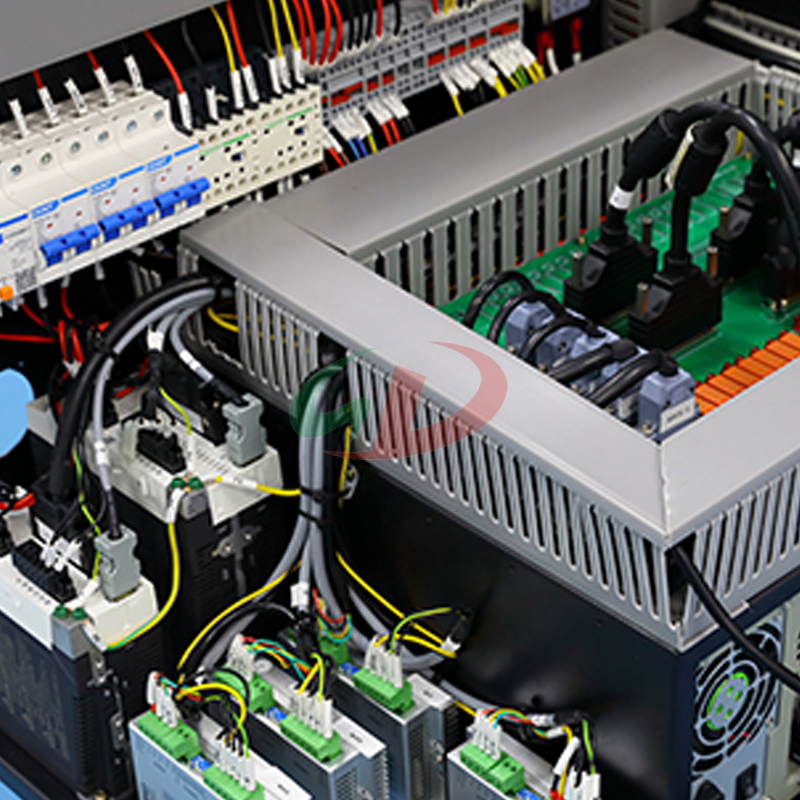

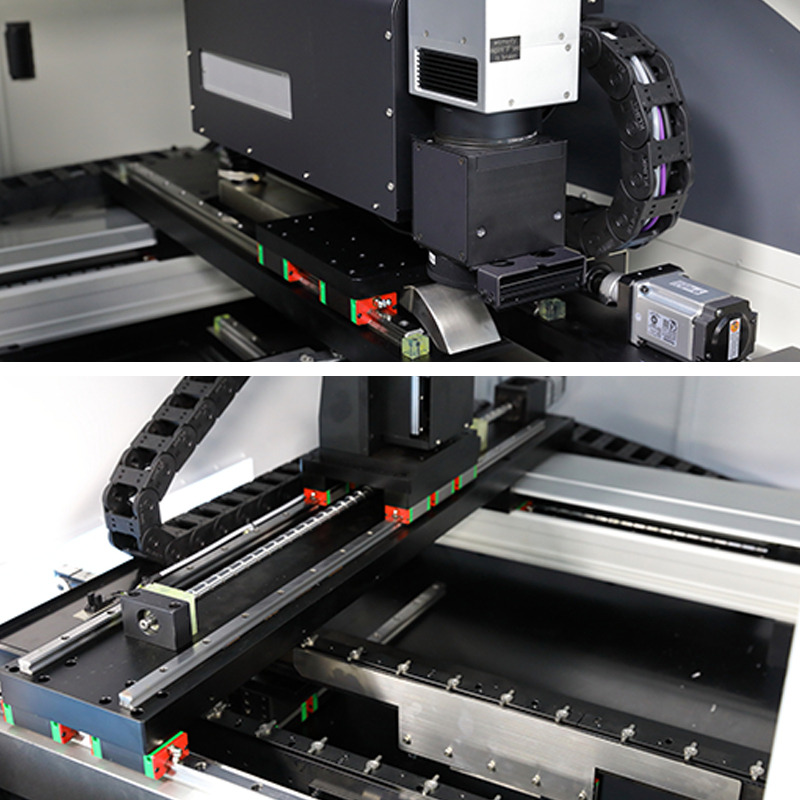

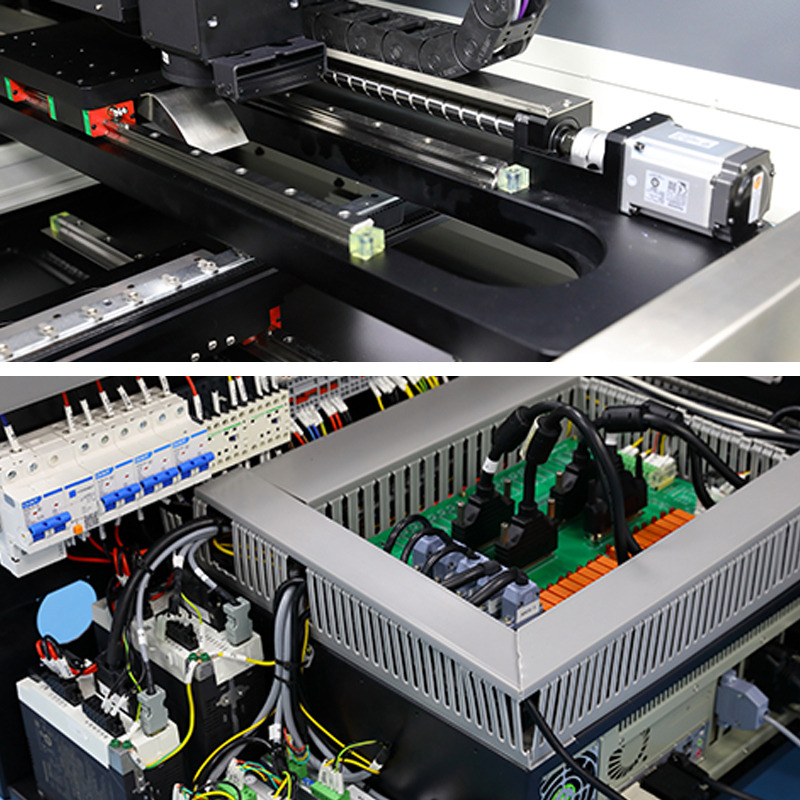

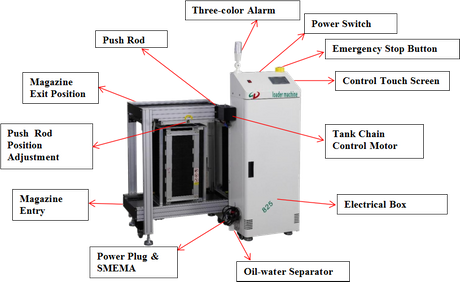

R510 is a multi-function laser marking machine for SMT.It is used for marking and tracing of anti-counterfeiting products.According to the characteristics of the products,there are two types of machine,track type and adsorption platform type,which can be selected and applied in a wide range. This equipment can be directly connected to the customer production line for production,or can be equipped with upper and lower plate machines for off-line production;460*420MM processing size meets all SMT product requirements; the fixing device on the top can make the focal length of laser marking ruchanged,compatible with different plate thickness,and has good stabitity.

Technical Parameter

Item	Technical Parameter
Model	R510 (Coaxial Vision)
Laser Type	UV/Green/Fiber/CO₂
Wave Length	355nm/532nm/1064nm/10640nm
Common Power	3W,5W/7W/10W/10W,20W,30W/10W,20W,30W
Marking Scope	5050-430400mm
Marking Speed	7000mm/s Speed up to 7000mm/s (For example: white ink processing of 2D code with size 3*3mm including 55 digits in 1 second)
Marking Position Accuracy	±0.05mm Can be customized according to customer requirements
Repeat Positioning Accuracy	±0.02mm
Visual System	R510 Coaxial Hawkeye vision correction function for standard graphic acquisition, accurate marking for FPC, Rigid-Flex boards and distorted positions
Applicable PCB Board Size	Size less than 460*420mm
Applicable PCB Thickness	0.5-5mm
Power Supply	220V/50Hz, 总功率≈2500W 220V/50Hz, Total Power ≈ 2500W
One-dimensional Code Type	Code 39, Code 25, Code 93, Code 128, EAN-13,EAN-8, ISBN and other common 1D codes
QR Code Type	Datamatrix, QR Code, micro QR Code, PDF417, Code 49, Code 16k and other QR Code
Processable QR Code Size	1.5mm1.5mm-20mm20mm (Minimum processable QR code size depends on laser type)
Character Types	Supports Ture Type fonts, monoline fonts (JSF), SHX fonts, dot matrix fonts (DMF).
Supported File Formats	DXF, PLT, Excel, TXT and other common file formats
Automatic Positioning Function	Support automatic photo taking, support 2-point, 3-point, 4-point positioning mode
Automatic Code Reading Function	Automatically read the QR code and save the data, automatically record and alarm when it cannot be read.
Intelligent Production Functions	Can be interconnected with ERP/MES/SAP systems to automatically obtain the work order number, product lot number, material code, product name, specifications and other information and automatic coding.
Machine Size and Weight	Size：92015001500mm Weight：750KG
Use Environment	Temperature：20-28℃ Humidity：30%-60%
