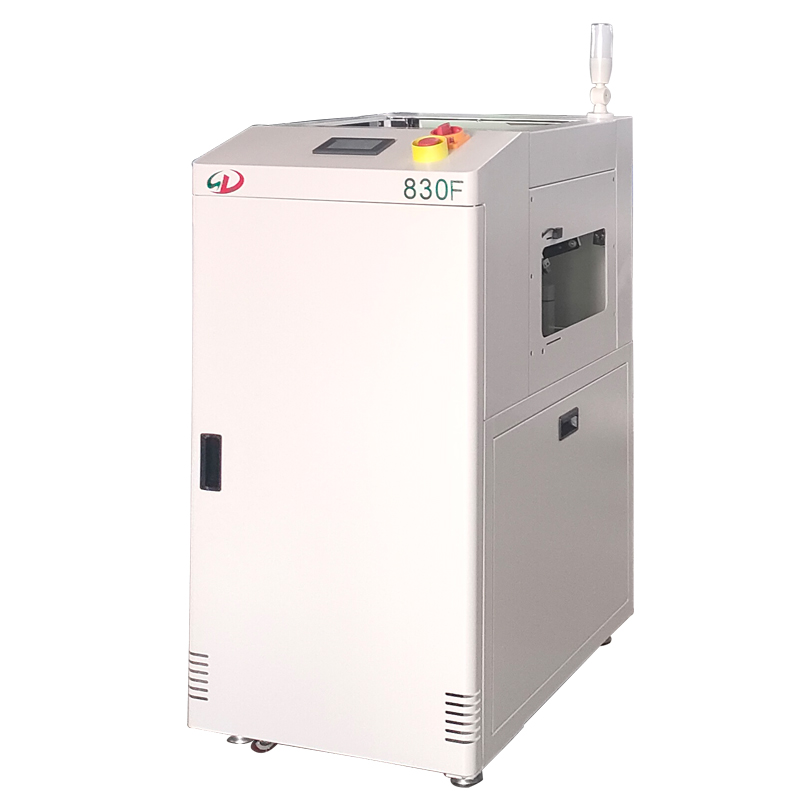

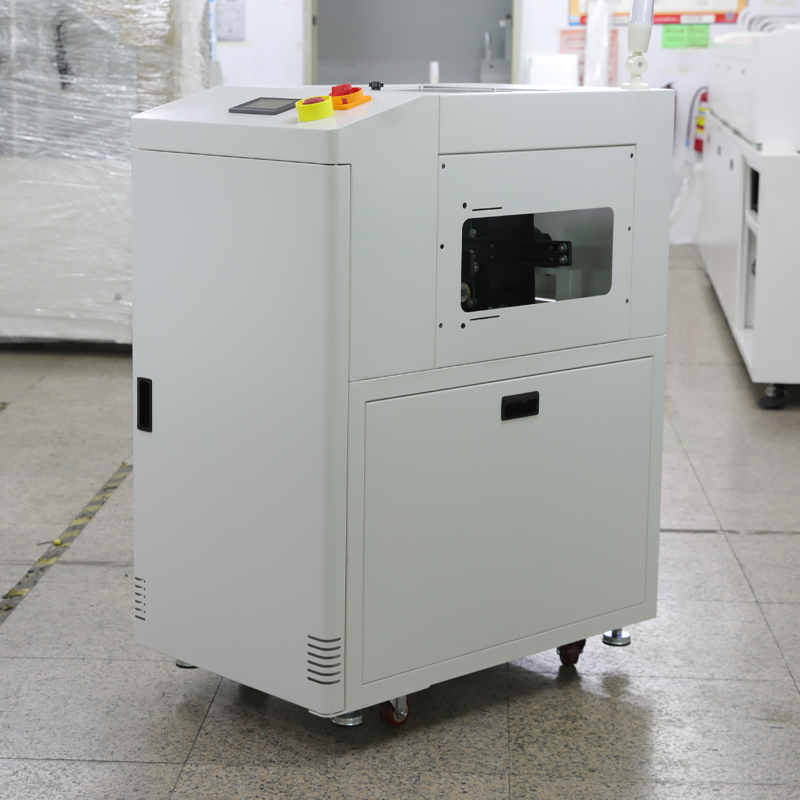

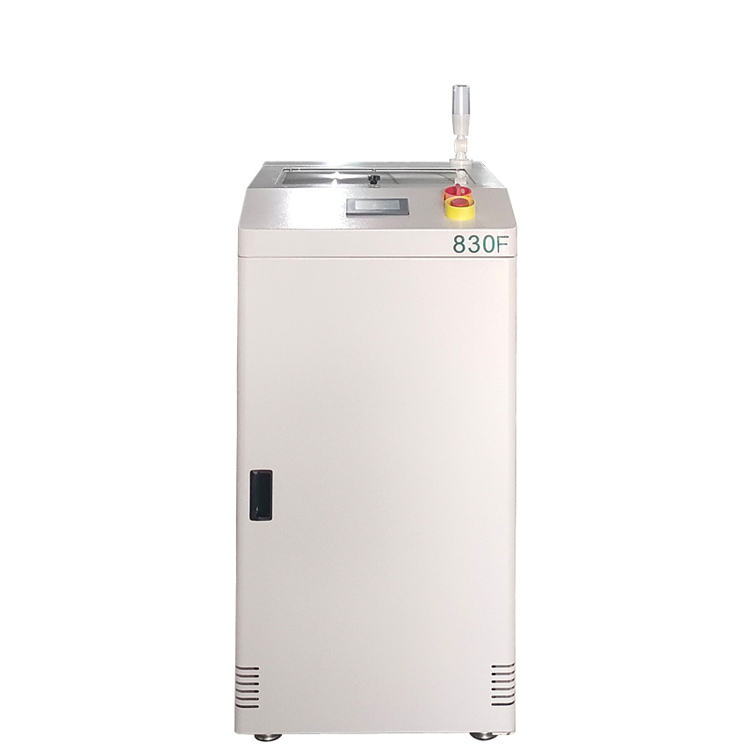

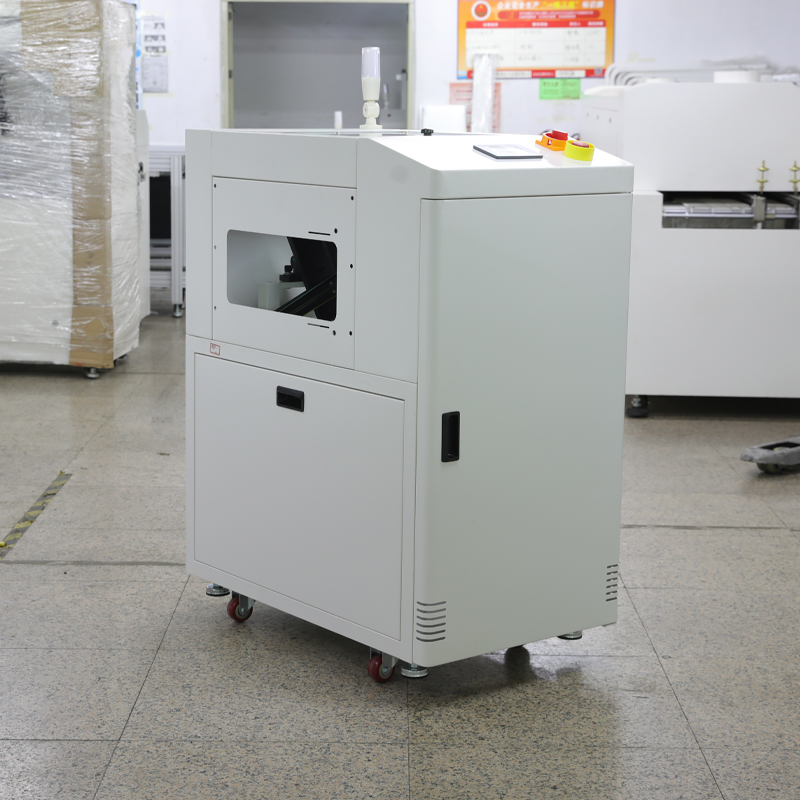

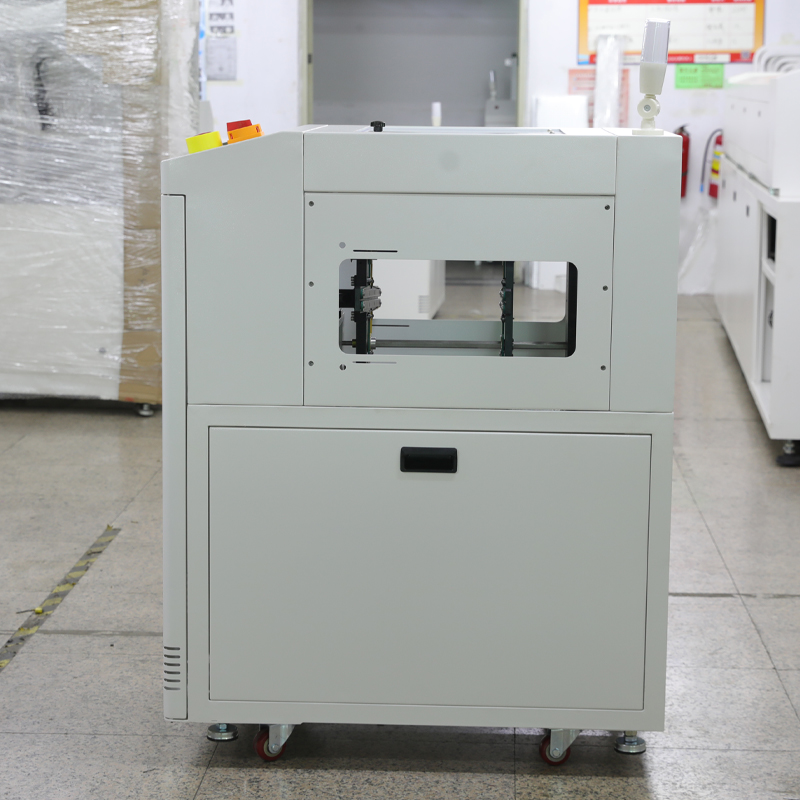

PCB Flipping Conveyor


Model:	SD-830FB
Availability:

Quantity:

Inquire Add to Basket

Model:
SD-835FB
Brand:
SHENGDIAN

Product Features:Aluminum alloy guide rail, stable, durable and beautiful.Frame full sheet metal 2.0mm cold plate welding.Microcomputer Panasonic PLC control system, stable and reliable work.Samkoon Touch screen display operation, with the function of automatic fault diagnosis, convenient man-machine dialogue.Multiple sound and light and touch screen prompt alarm function.The width of the guide rail can be adjusted according to the PCB size, and the width range can be customized.Blocking the cylinder ensures that the PCB plate does not fall out when flipping.The top safety cover can be opened to facilitate the processing of the machine hardware during maintenance.Adjustable corner speed ensures that the PCB plate does not slide.Width adjustment device for stable balance (hand control wire rod adjustment).With the flip boards and PASS direct-through dual mode.Standard with SMEMA signal interface.

Conveyor Loader and Unloader Pick and Place Machine Reflow Oven Wave Soldering Machine PCB Printer SMT Turning Conveyor PCB Conveyor Solder Paste Printer Printing Machine SMT Production Printing Machine

Product Description

Product Features:

1、Custom-machined 6061 aluminum rails: sturdy, durable, and seamlessly jointed to prevent PCB jamming.

2、Heavy-duty welded sheet metal frame with off-white powder coating.

3、Microcomputer Japan Panasonic PLC control system, stable and reliable work.

4、Samkoon touch screen display operation, with automatic fault diagnosis function, man-machine dialogue is convenient.

5、Multiple audible and visual and in-touch screen prompts for alarms.

6、The width of the guide can be adjusted according to the PCB size.

7、The guideway is capable of accommodating the transfer of fixtures with a slot height of 6mm.

8、Adopting automatic anti-drop board mode, blocking cylinder mode, the blocking cylinder ensures that the PCB board will not fall out when it is flipped.

9、The electrical components of the equipment are of well-known brands and come standard with a standard SMEMA signal interface.

10、Smaller machine footprint saves production line space.

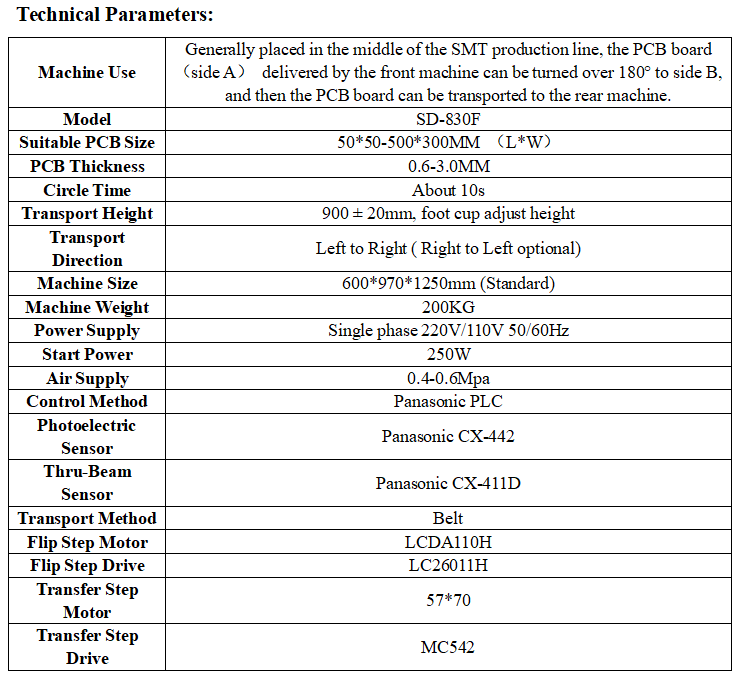

Technical Parameters

Working Principle
Used in the middle of SMT production line. PCBs from upstream machines are flipped 180 degrees from A-side to B-side by the flipper and then sent to downstream machines.
Scope of Application
Model	SD-830FB
PCB Size	5050mm-480300mm
PCB Thickness	0.6-3.0mm
Cycle Time	About 10 S
Transport Height	900±20mm (Height-adjustable foot cups)
Transport Direction	Left to Right (Right to Left Optional)
Fixed Rail	Front Rail Fixed (Rear Rail Fixed Optional)
Machine Body
Machine Size	6009001250mm
Machine Weight	220KG
Control System & Structure
Power Supply	Single Phase 220V
Start Power/No-load Power	1100W
Air Supply	0.4-0.6Mpa
PLC	Panasonic
Touch Screen	4.3# Samkoon Display Screen
Flipping Motor	110 High-torque stepping motor LCDA110H (synchronous wheel driven mechanical rotation)
Flipping Drive	110# Digital Drive LC26011H
Transport Motor	57*56 Stepper Motor
Transport Drive	LC26011H
Conveyor Belt	Anti-static 3.8mm wide seamless belt
Width-adjusting Shaft	Taiwan Hiwin Ball Screw
Rotation Shaft	&30 High Strength & Heavy Duty
Solenoid	MIT
Three-Color Light	Warning red light with buzzer, yellow light, green light is an integrated three-color alarm light
Photoelectric Sensor	Panasonic CX442
Slot Sensor	Japan Omron 671
Blocking Cylinder	AirTAC Cylinder CDQ2B20*40
