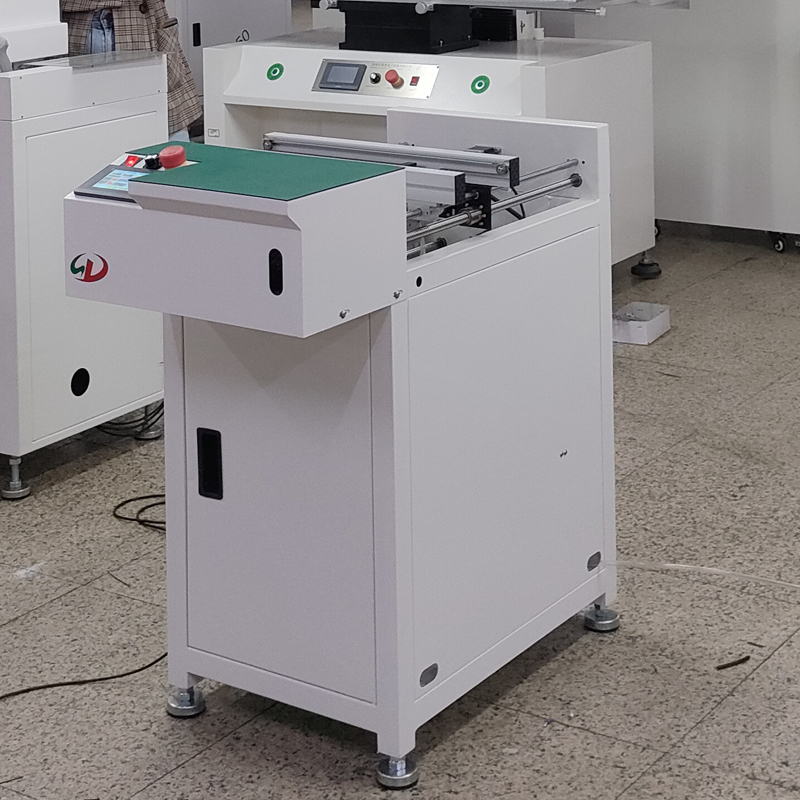

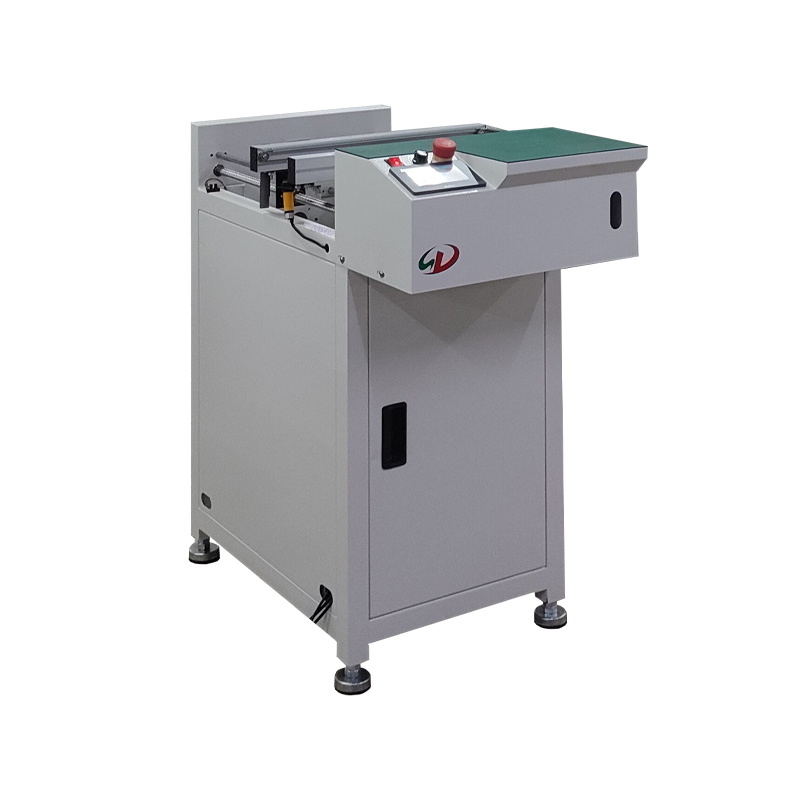

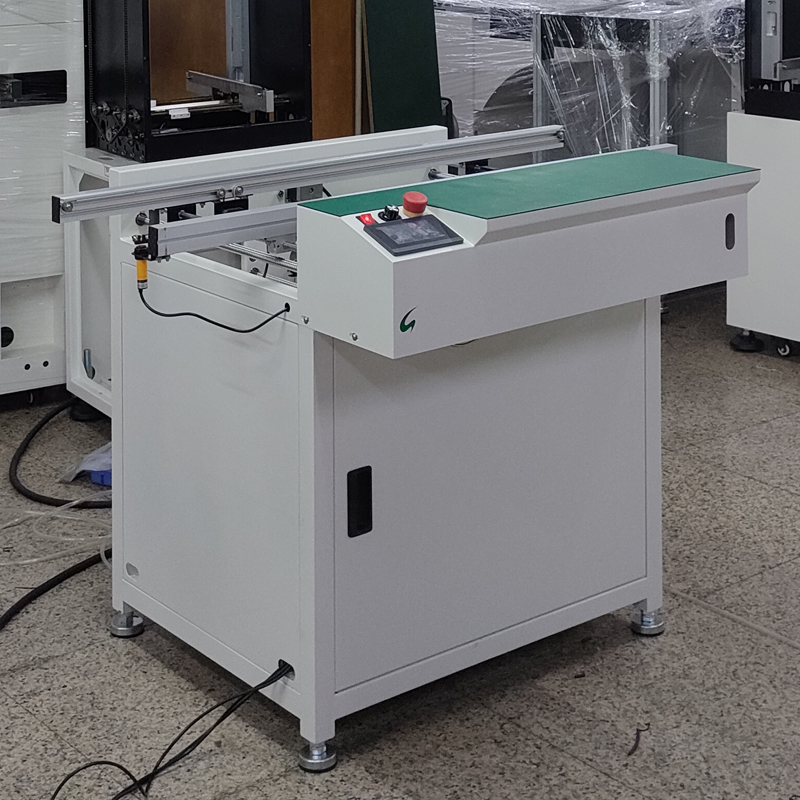

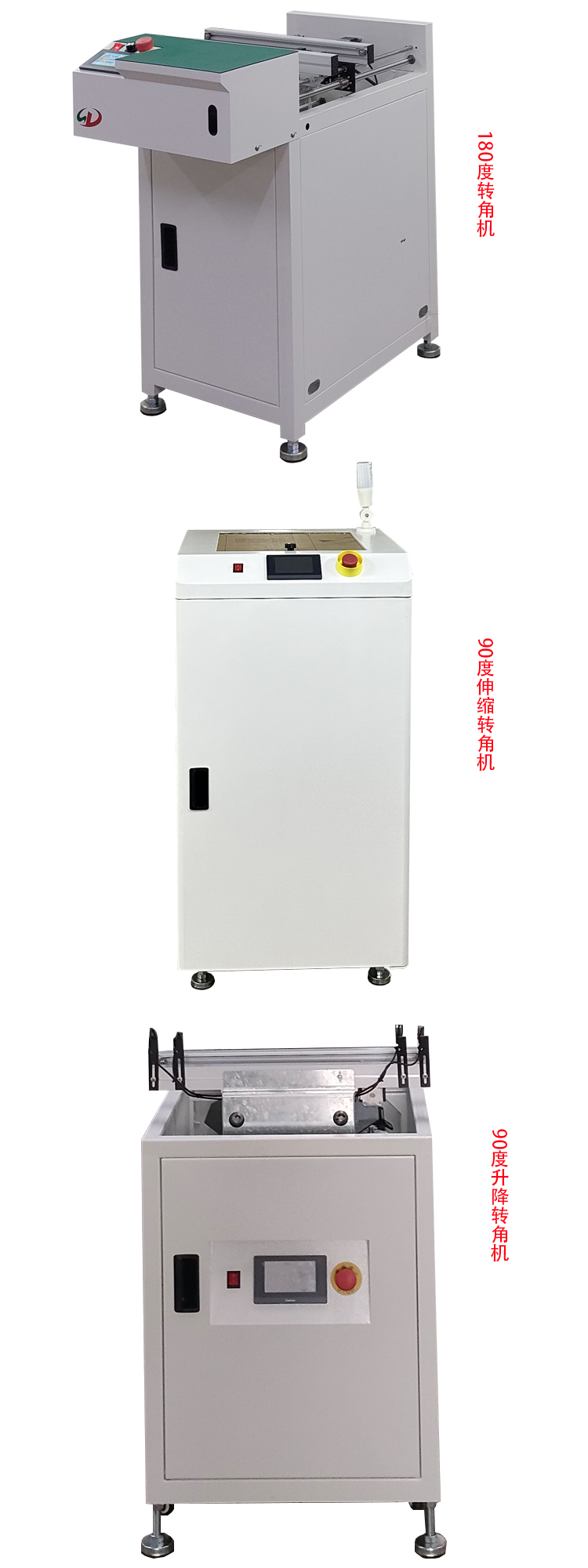

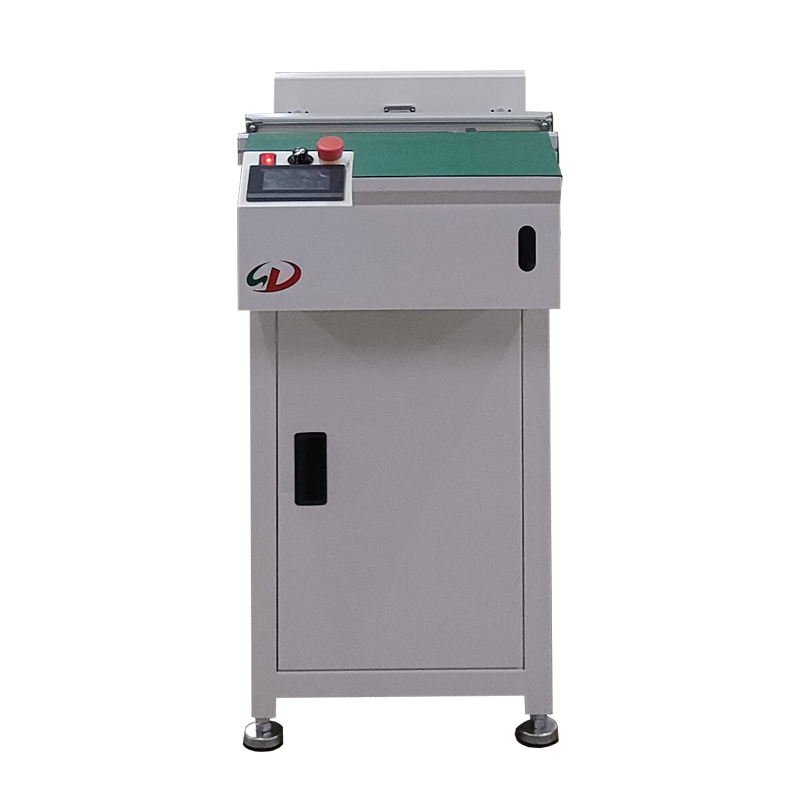

Factory Manufacturing PCB Boards 90°/180° Turning Conveyor SMT Conveyor for Rotating Pcb Boards in PCB Production

Product Description

Product Features

1、Standard precision ball screw motorized adjustable width, to ensure the smooth adjustment of width and precision.

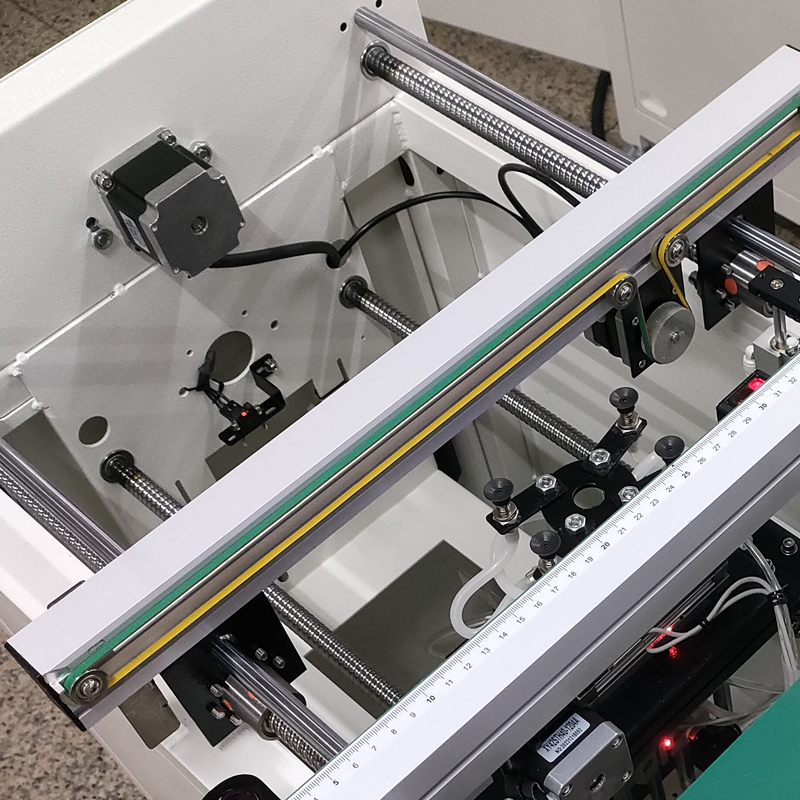

2、Adopting professional wear-resistant anti-static flat belt and special aluminum guide rail to ensure smooth connection and stable transportation.

3、Standard equipped with signal line, can be connected with other equipment online.

4、According to the customer's requirements, the length and width of the guide rail can be customized.

5、Working table surface is equipped with anti-static rubber, in order to better prevent static electricity.

6、Transmission motor adopts two 42*48 stepping motors.

Technical Parameter

Model	SD-500PTC
Machine Size	500900900mm

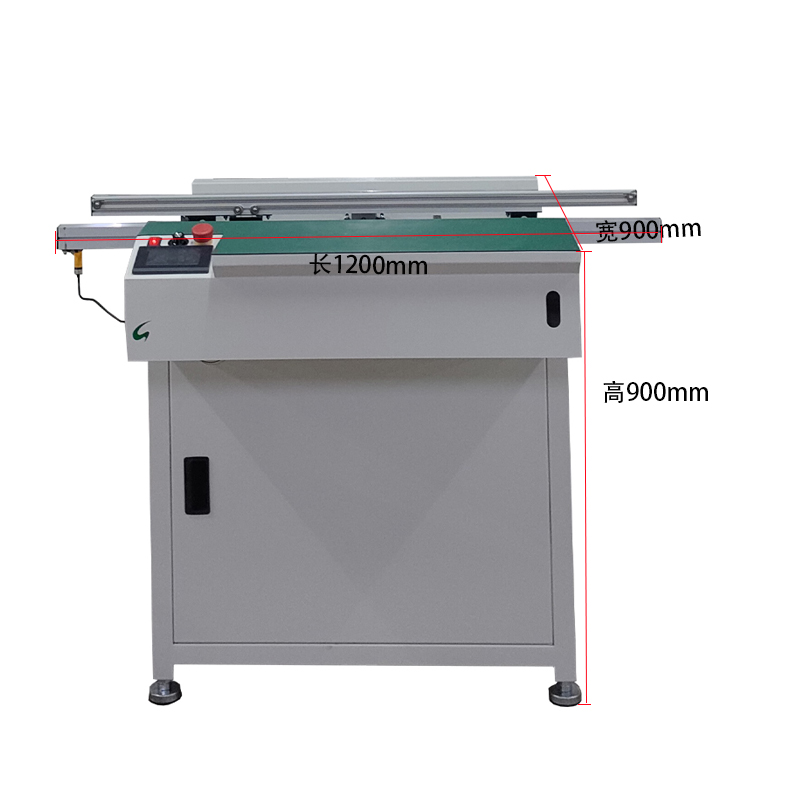

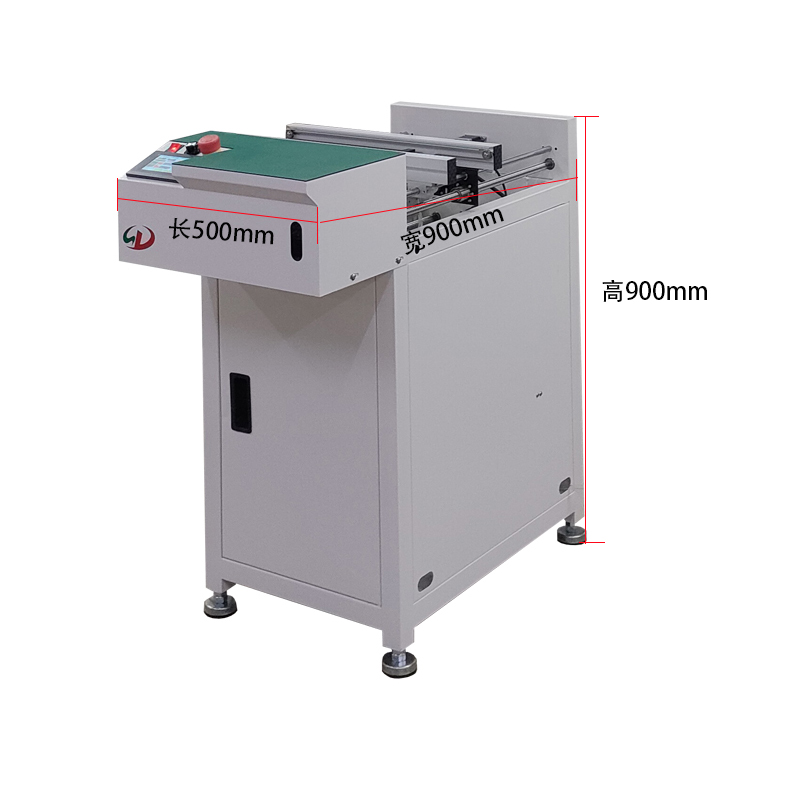

PCB Size (PASS Mode)	5050-500300mm
PCB Size (Turning Mode)	100100-300300mm
Transport Height	900±20mm
Transport Direction	L-R(R-L)
Transport Speed	0~2000mm
Control System	Panasonic PLC + Samkoon 4.3 # touch screen
Transport Power Control	Stepper motor and step drive
Rotation Power Control	Stepper motor and step drive
Power Supply	AC220V1P 50/60Hz
Power Consumption	Approx.100W
Length of Guide Rail	600mm
Weight	About 61KG
Communication Interface	Double line cable is used
Fixed Guide Rail	Front rail fixed (rear rail fixed option)
