| Model: | |
|---|---|
| Quantity: | |
Product Features
1. The roller directly tensions the mechanism to ensure a smooth transport belt.
2. Double screw nut lifting mechanism, easy and convenient to operate.
3. It adopts professional wear-resistant static flat belt transmission, which is convenient and easy to use.
4. It is used to unload PCB’s or pallets from wave soldering machine at 6-7°.
5. Transmission speed, transfer height and track angle can be adjusted.

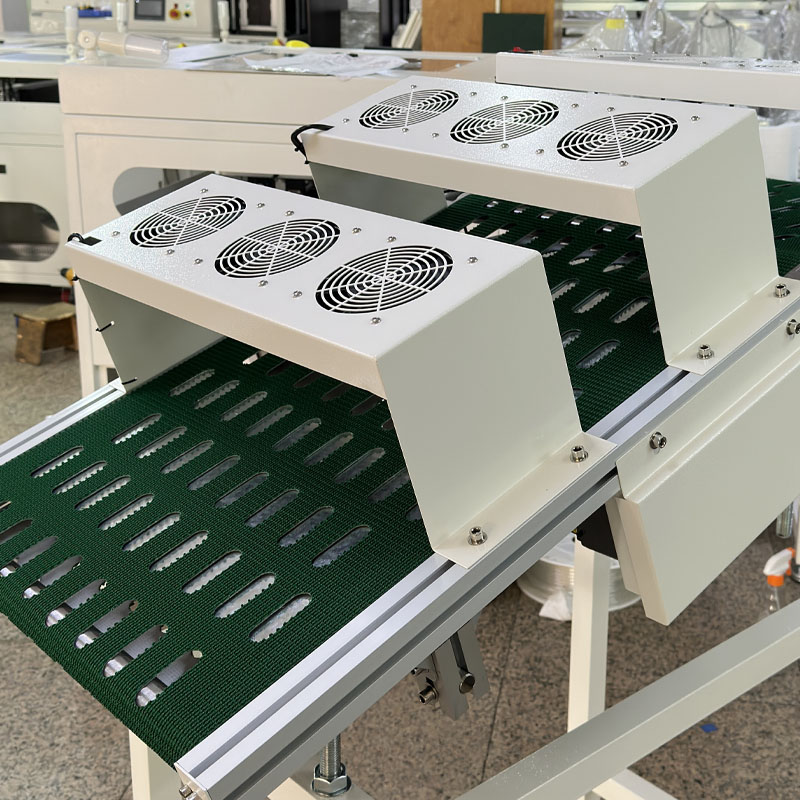

6. Cooling fan can be installed so that it can protect the PCBs or the component.
7. Special belt and track, transmission smooth, and work stable and reliable.
Technical Parameter
Model | SD-400 |

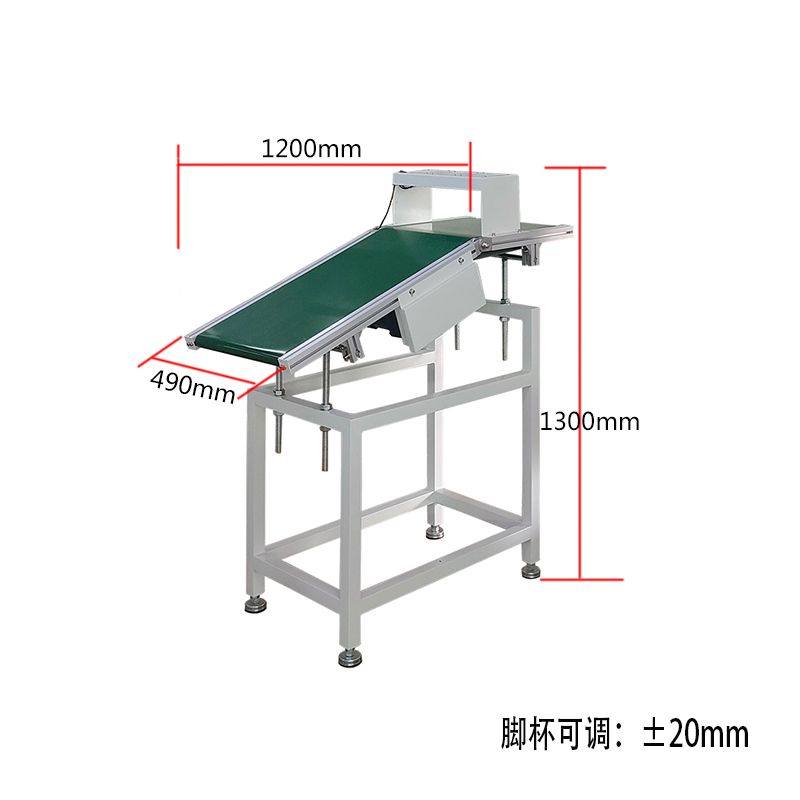

Dimensions(L×W×H) | 1200*490*1200(mm) |
PCB width | 0-400(mm) |
PCB direction | L-R |
Conveyor speed | 0-4000(mm)/Min |
Power supply | 1P AC220V 50/60HZ |
Conveyor Height | 750-1200mm(adjustable) |
Belt Material | ESD Belt |
Conveyor length | 400±800(mm) |
Weight | Approx.48KG |
Product Details
Company Profile
Packing and Shipping
Certifications
